Mixer Truck

China Mobile Heavy-Duty Sinotruk HOWO 64 /84 Mixer 8 10 12 14 16 18 20 Cbms Mixer Truck Variable Capacity on-Site Hydraulic Discharge Drum Mixing Concrete

The Howo TX 8*4 mixer truck is a top - choice in the industry. Its powerful WP7H.320E62 engine ensures smooth operation even under heavy loads. The imported drive system guarantees high - efficiency mixing and discharging. With a sturdy chassis and large - capacity tank, it combines reliability, productivity, and durability for construction projects.

Contact Now

Product Process

• 440-Horsepower Model

• Vehicle Parameters: Model ZZ1317N306GE1. Dimensions are about 10150×2500×3995mm. Wheelbase is 1800 + 3050 + 1350mm. Gross vehicle mass is 31000kg. Curb weight is 13.6 tons.

• Power System: Engine model WP10H400E50. Transmission HW19710L.

• Chassis System: Front axle H653. Rear axle MAT16ZG. Steering gear ZF8118. Tires are 1100R20.

• Upper Assembly Parameters: Tank capacity 12m³. Pump and motor are ARK110, reducer is PMP7.8.

Product detail diagram

0102030405

350-Horsepower Model

• Vehicle Parameters: Model FJG5313GJBZZW. Body size is 9.83×2.53×3.96m. Wheelbase is 1800 + 3050 + 1350mm. Rated load is 17.45 tons. Vehicle weight is 13.42 tons.

• Power System: 350-horsepower engine.

• Chassis System and Upper Assembly Parameters: Details are not fully specified in available data but likely have standard configurations for Howo TX series.

video playback

Advantages

01 /

320-Horsepower Model

• Vehicle Parameters: Model QDZ5319GJBZHTX30F1. Dimensions are 9760×2530×3800mm. Wheelbase is 1800 + 3000 + 1400mm. Curb weight is 11300kg. Gross vehicle mass is 31000kg.

• Power System: Engine model WP7H.320E62. Transmission HW13709XSTL.

• Chassis System: Front axle VGD75. Rear axle MCJ11BGY with a gear ratio of 5.29. Suspension is 3/3/4. Tires are 11R22.5 18PR.

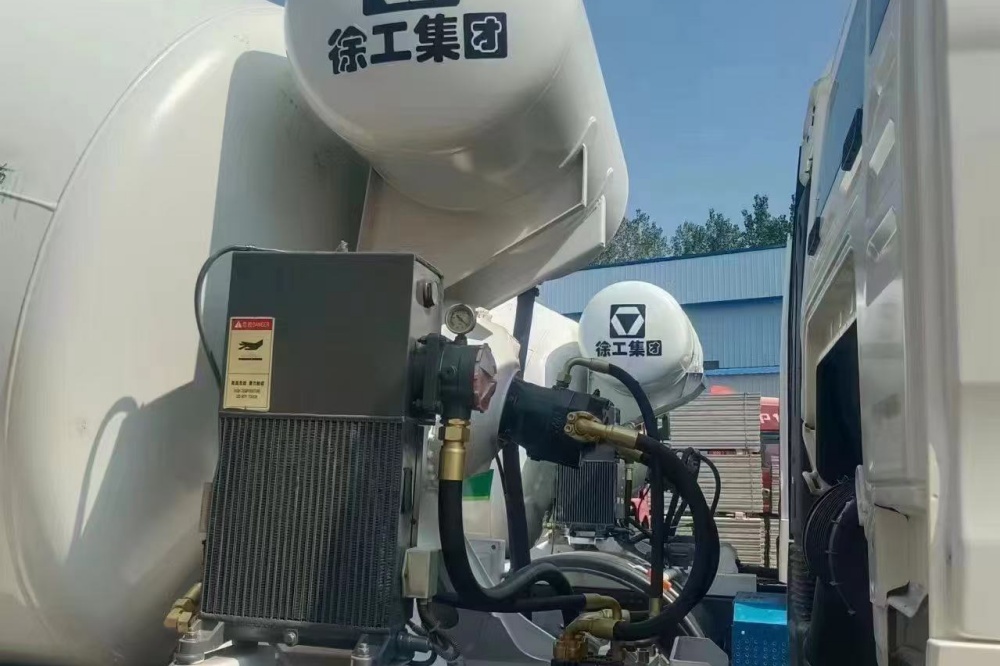

• Upper Assembly Parameters: Agitating capacity is 8m³. Imported drive system. Feeding speed ≥3m³/min. Discharging speed ≥2m³/min. Residual discharge rate ≤0.5%.

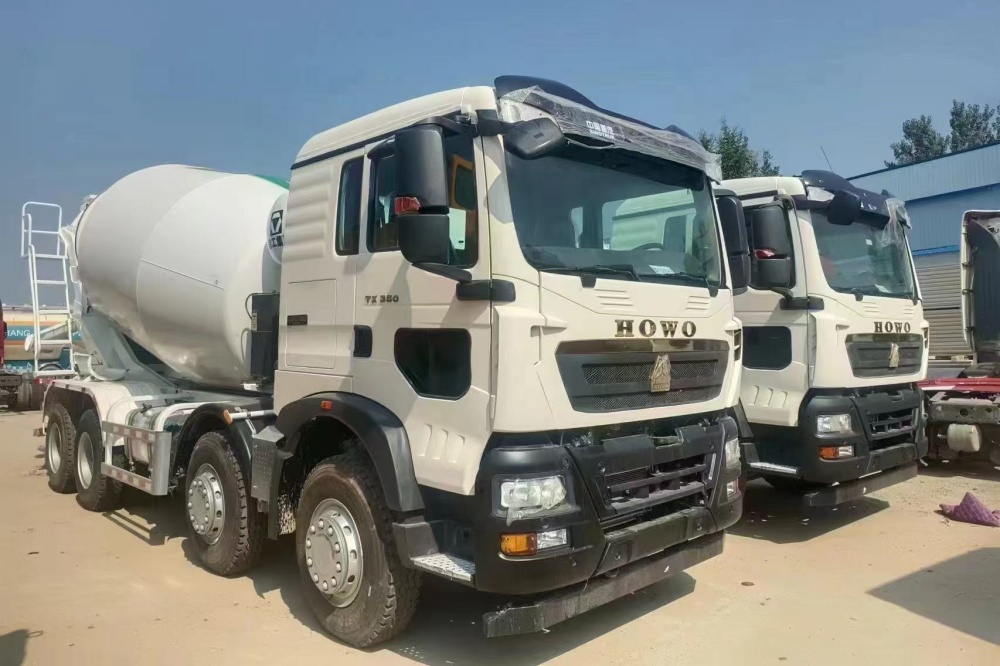

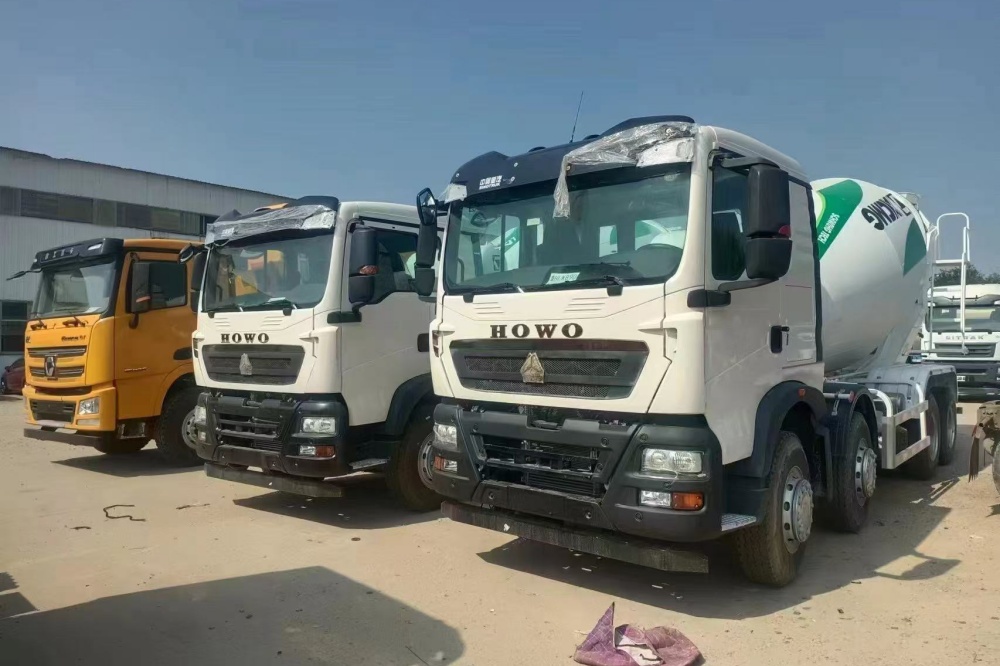

Discover Howo TX 8×4 mixer truck

01 /

8×4 Drive Layout

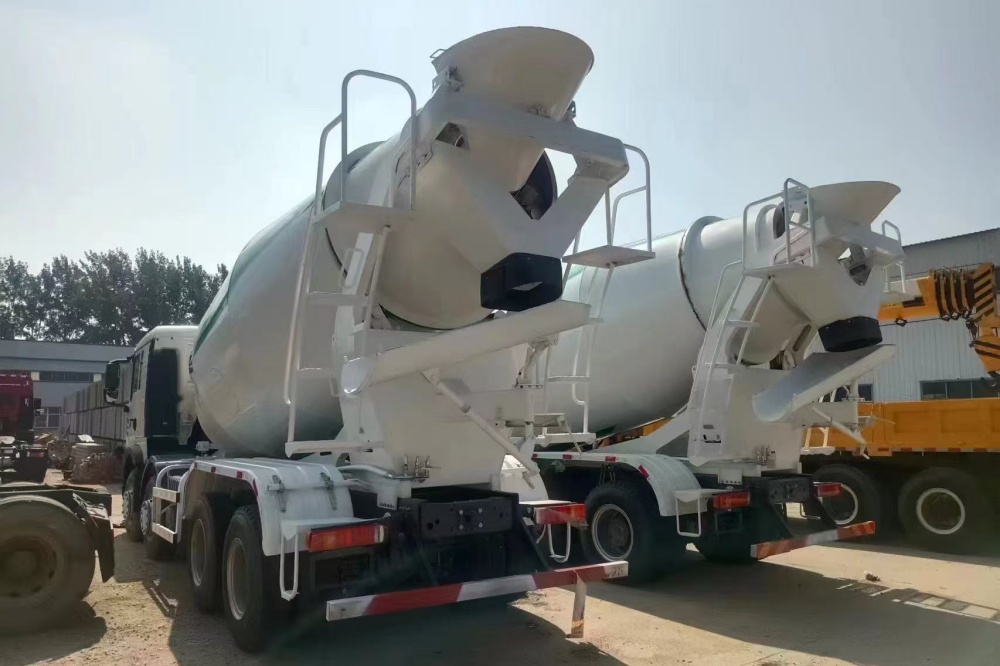

This mixer truck adopts an 8×4 drive layout, boasting powerful performance and excellent passability. Equipped with a high - performance engine, it has strong power and can easily handle various complex road conditions. Even on rugged mountain roads or muddy construction sites, it can move forward steadily to ensure that the concrete is delivered on time. Its large - capacity mixing tank is ingeniously designed. The tank is made of high - quality wear - resistant steel, which is not only sturdy and durable but also ensures that the concrete is evenly mixed during transportation to avoid segregation and maintain stable concrete quality. The unique blade design further optimizes the mixing effect, making each mixing more thorough.

02 /

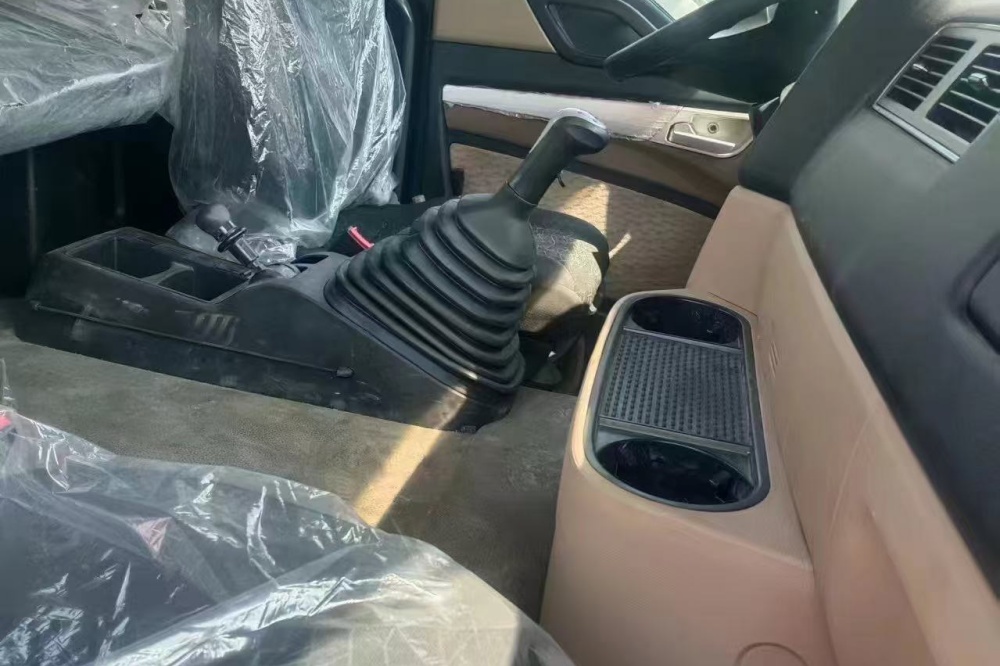

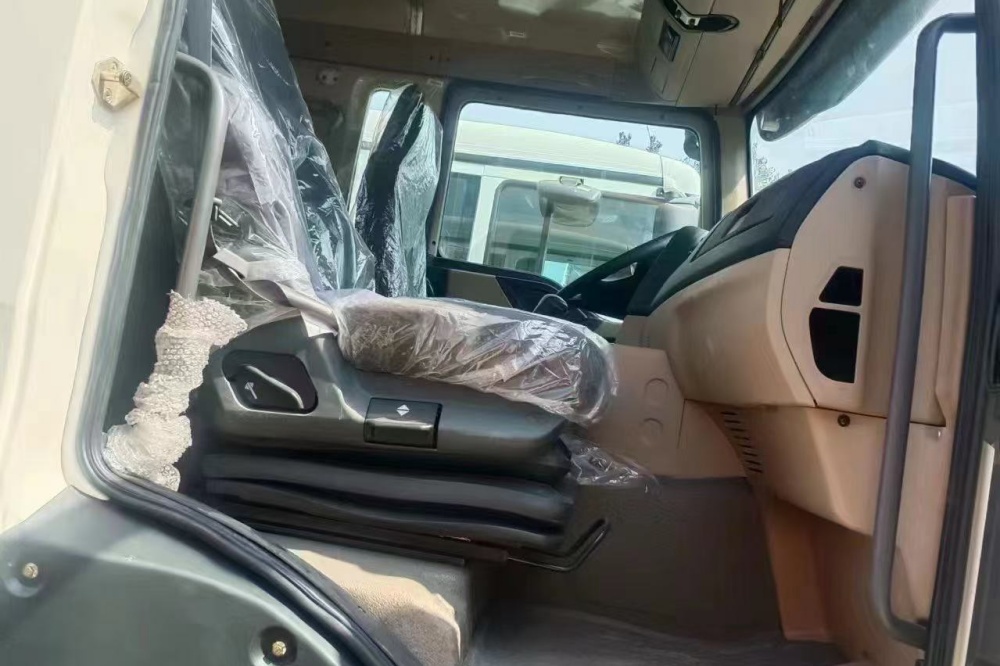

The Interior Of The Cab Is Comfortable

The Howo TX mixer truck attaches great importance to the driving experience and safety. The interior of the cab is comfortable, and the ergonomic seats can effectively relieve driver fatigue. It is equipped with advanced intelligent driving assistance systems, such as collision - avoidance warning and lane - departure reminder, to comprehensively guarantee driving safety and reduce accident risks. In addition, the vehicle is easy to maintain, with highly universal parts, which reduces the usage cost. Choosing the Howo TX 8×4 mixer truck means choosing efficiency, reliability, and safety, providing a solid guarantee for the smooth progress of construction projects.
