Tractor

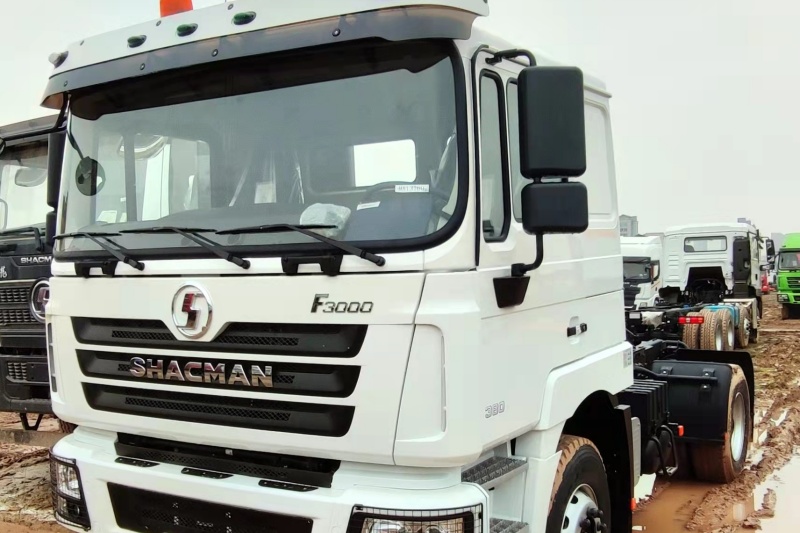

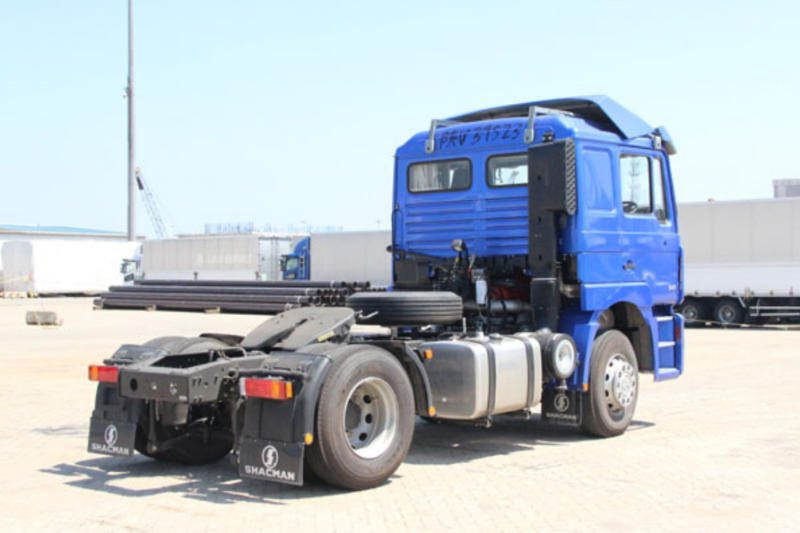

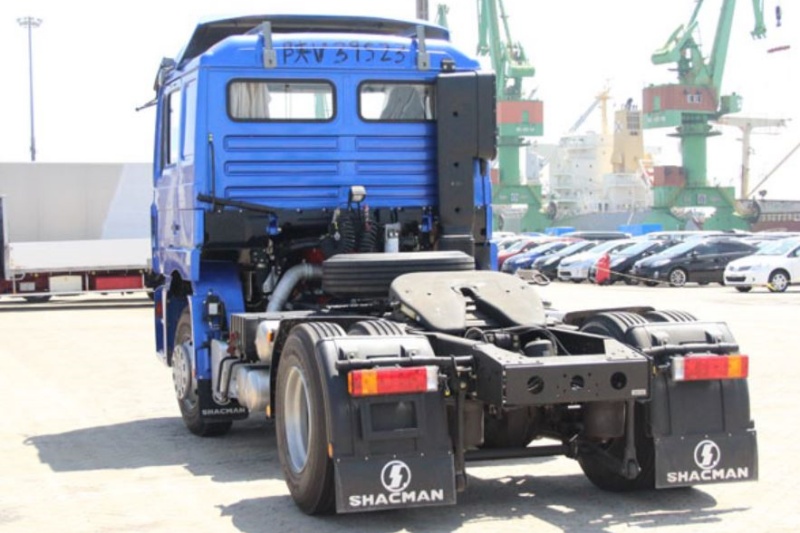

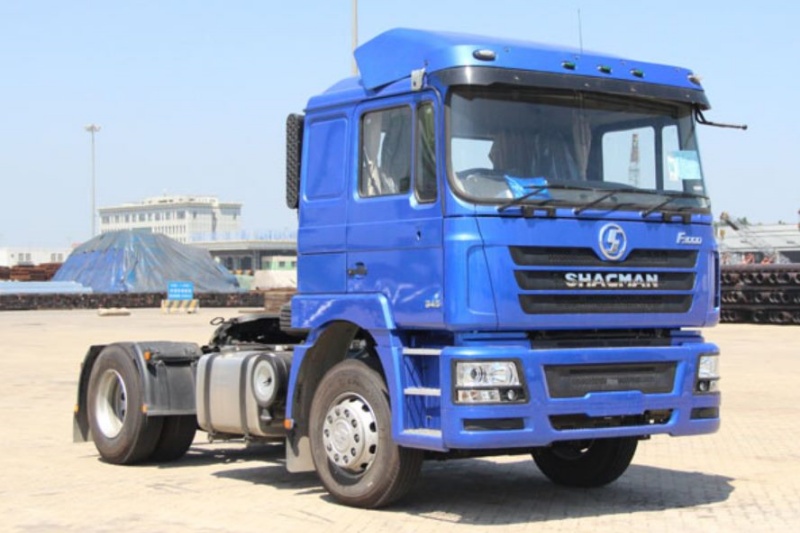

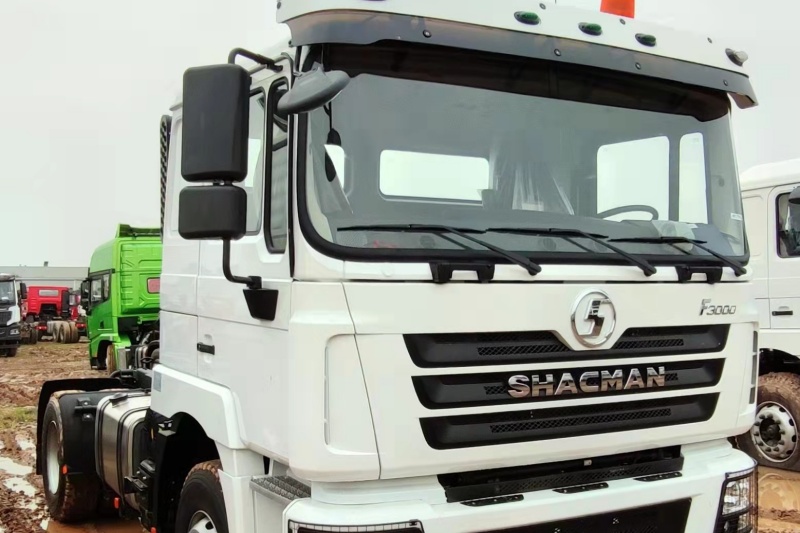

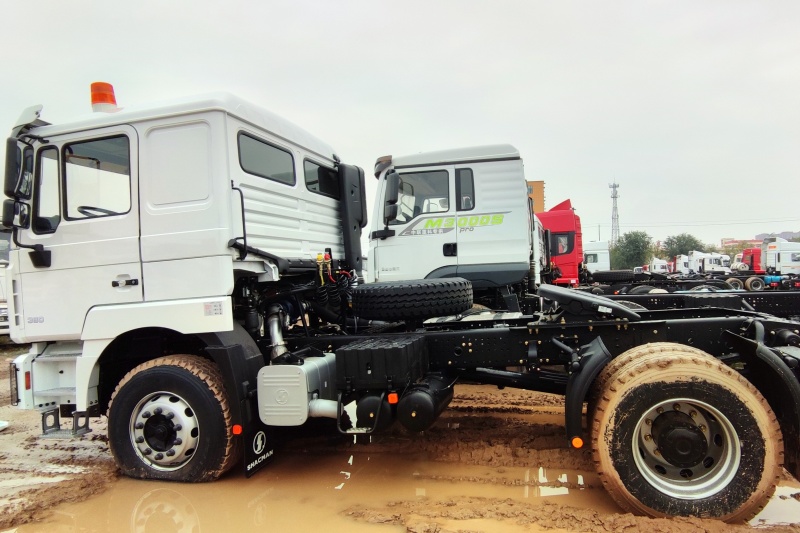

Shacman F3000 4*2 Tractor Truck

The Shacman F3000 4*2 tractor boasts remarkable advantages. Equipped with Weichai's large - pump engines, it delivers robust power and high torque, adapting to various transportation tasks. The Fast manual transmission ensures smooth gear - shifting and high transmission efficiency. The MAN - technology axles are sturdy and durable, with strong load - bearing capacity. Its large - capacity fuel tank provides long - range driving, and maintenance is convenient with easily accessible parts, enabling efficient operation.

Contact Now

Product Process

• Shacman Delong F3000 336-horsepower Version

• Vehicle Parameters: Announcement model SX4187NR361K. The total traction mass is 34000kg, the curb weight is 7340kg, the gross vehicle mass is 18000kg, the overall vehicle dimensions are 6150×2490×3670mm, and the wheelbase is 3600mm.

• Engine: Model Weichai WP10.336, displacement 9726mL, maximum power 247kW, maximum torque 1250N·m.

Product detail diagram

010203040506

Materials

• Transmission: Model 9JS135, with 9 forward gears.

• Chassis: The width/height of the frame is 940 in the front and 762 in the rear. The number of leaf springs is 4/3. The front axle is a 7.5T MAN + drum type, and the rear axle is a 13T MAN technology single-stage axle with a gear ratio of 4.111.

• Tires: Specification 12R22.5.

Shacman Delong F3000 380-horsepower Version

Advantages

01 /

Vehicle Parameters

The overall length of the vehicle body is generally over 6 meters, the width is about 2490mm, and the height is over 3600mm. The total traction mass can reach over 34 tons.

02 /

Engine

Weichai's National Emission Standard II large pump engine, with a displacement generally around 10L, and the maximum power is about 280kW or more.

03 /

Transmission

Usually matched with a Fast manual transmission, and the number of forward gears may be 9 or 12.

04 /

Chassis

The front axle is a 7.5T MAN technology axle, the rear axle is a 13T MAN technology axle, with a leaf spring suspension, and the frame is sturdy and durable.

05 /
