Howo Dump Truck 8*4 371-420hp.12 Wheeler Trcuk

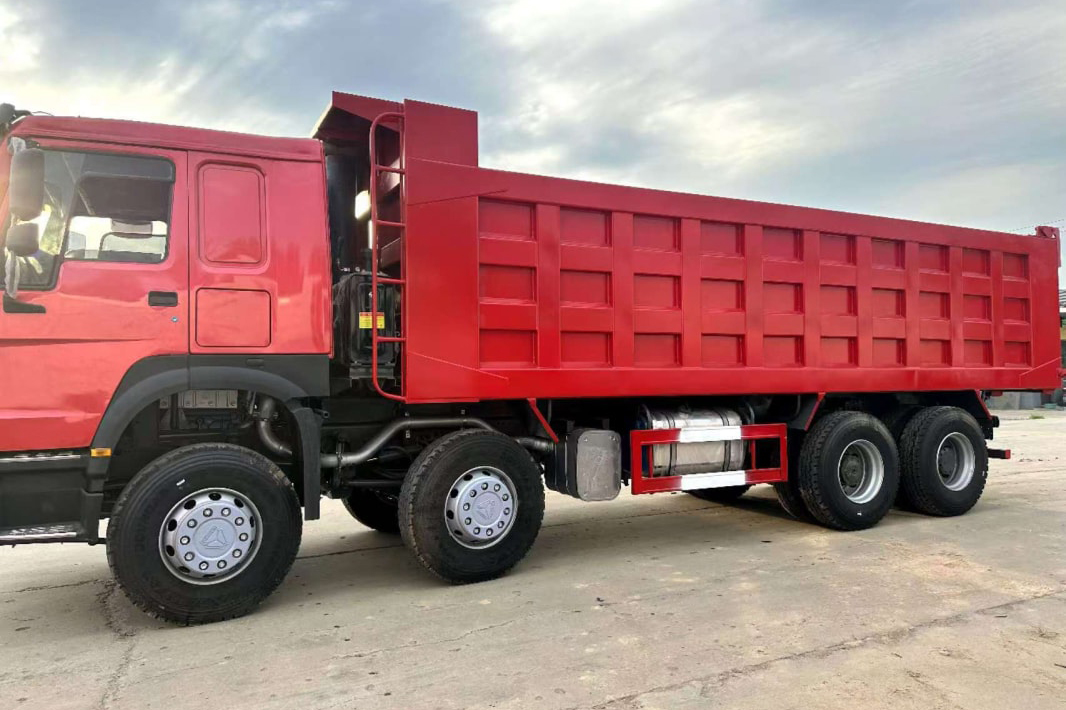

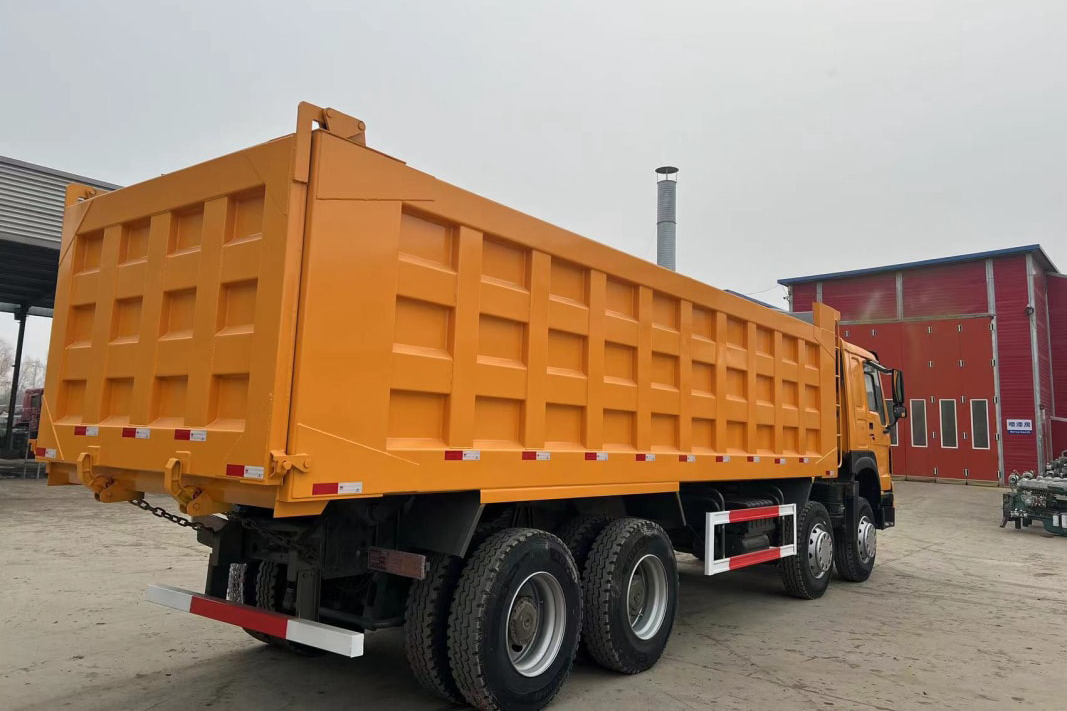

Howo 8×4 National II National III tipper truck with strong power, 371-375 HP. Strong chassis, large load capacity. The cargo box is big and durable. The core is in power and chassis, the selling point is big space and easy to operate, the competitiveness is cost-effective and reliable.

Howo 8×4 National II Standard Dump Truck (Announcement Model ZZ3317N4867A)
Power System
Engine Model: Sinotruk WD615.95E
Displacement: 9.726L
Power: 273kW
Torque: 1350N·m

Contact Now

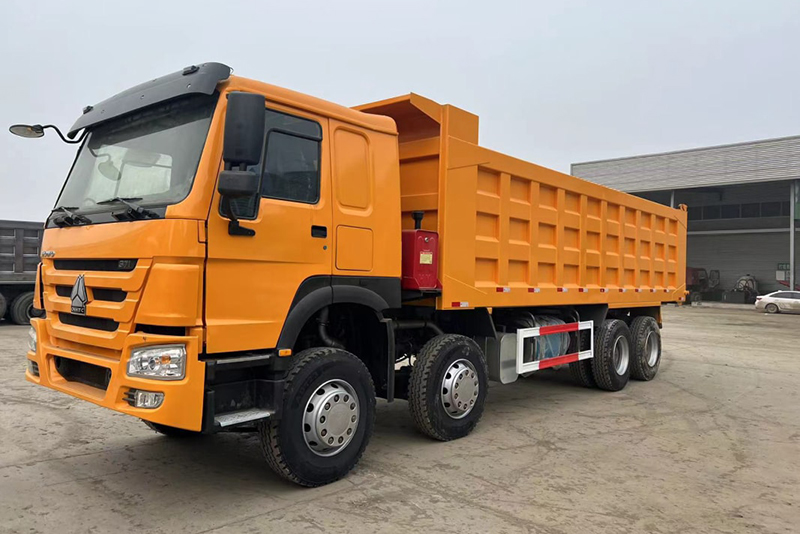

howo dump truck 84 371-420HP.12 wheeler trcuk (12).jpg

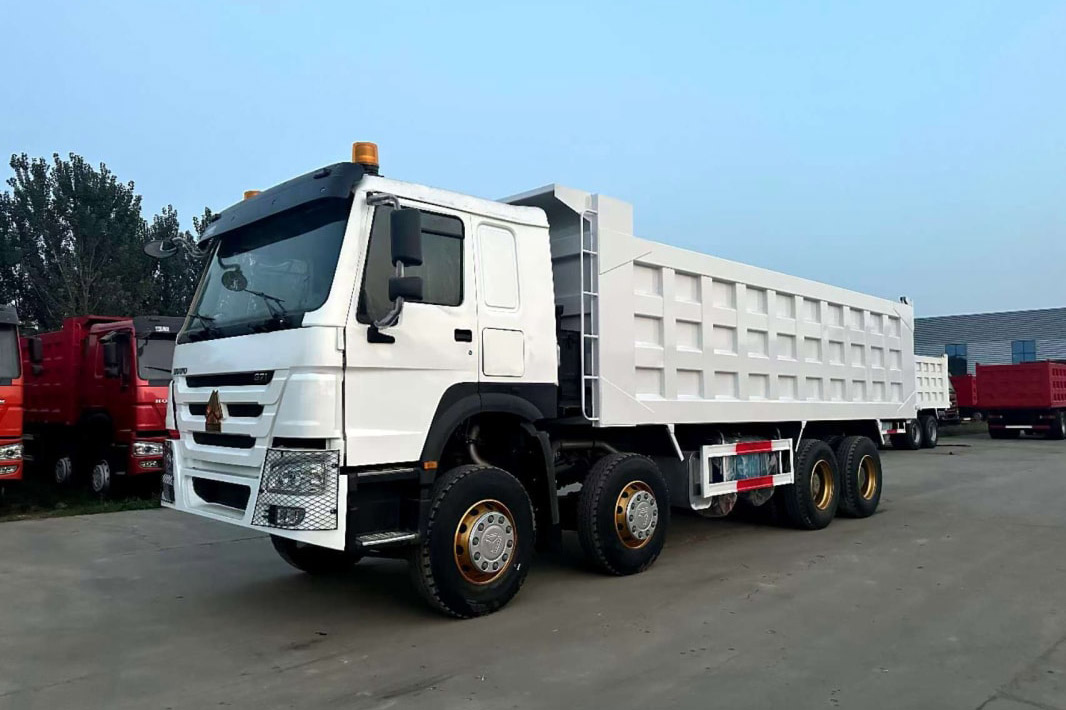

howo dump truck 84 371-420HP.12 wheeler trcuk (11).jpg

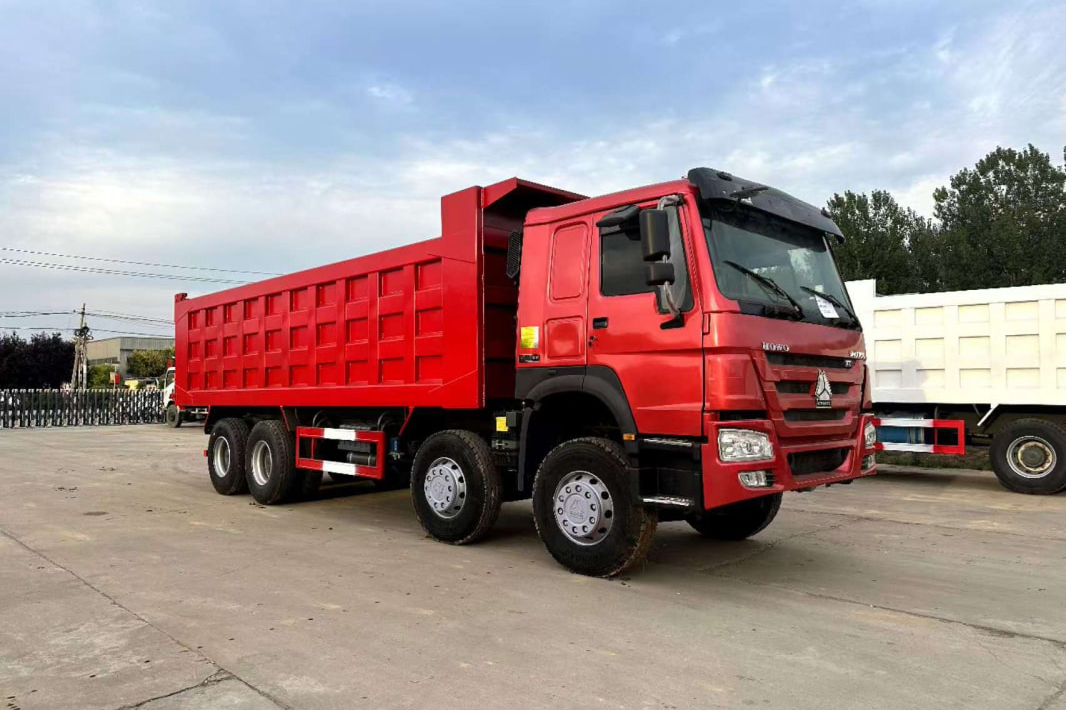

howo dump truck 84 371-420HP.12 wheeler trcuk (10).jpg

howo dump truck 84 371-420HP.12 wheeler trcuk (6).jpg

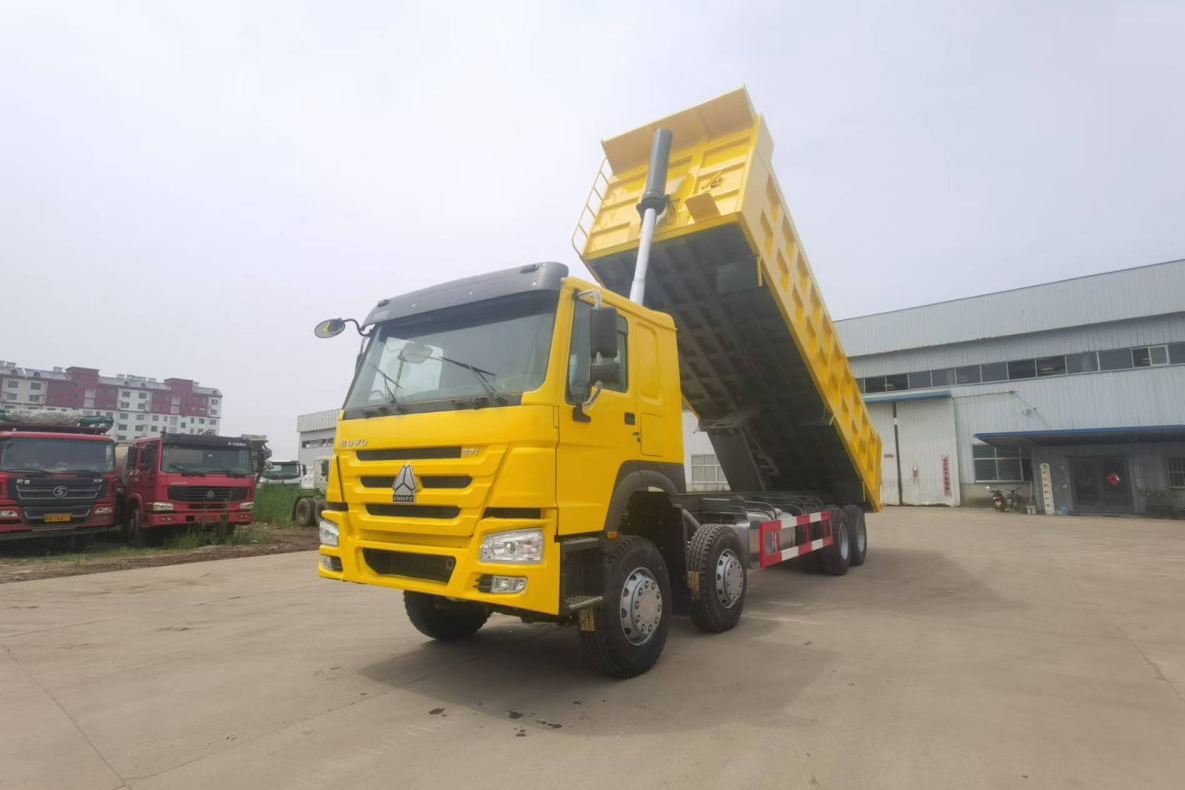

howo dump truck 84 371-420HP.12 wheeler trcuk (5).jpg

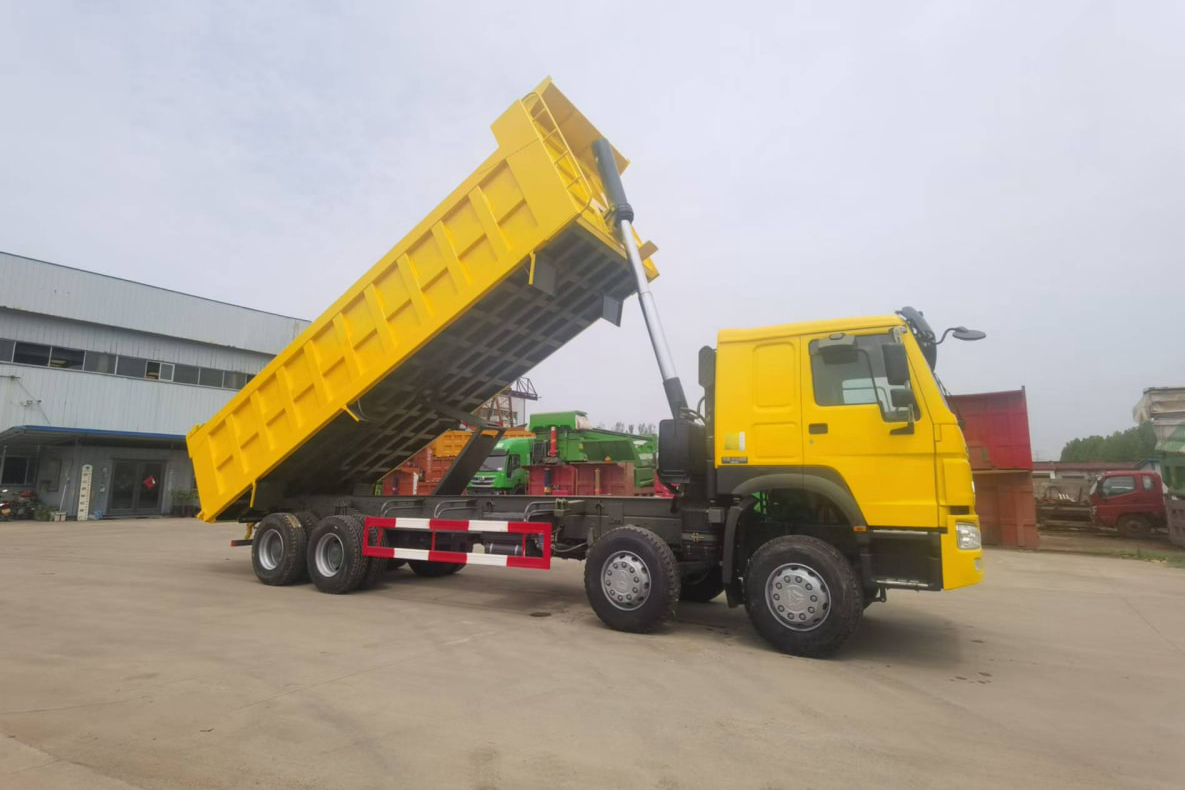

howo dump truck 84 371-420HP.12 wheeler trcuk (7).jpg

howo dump truck 84 371-420HP.12 wheeler trcuk (8).jpg

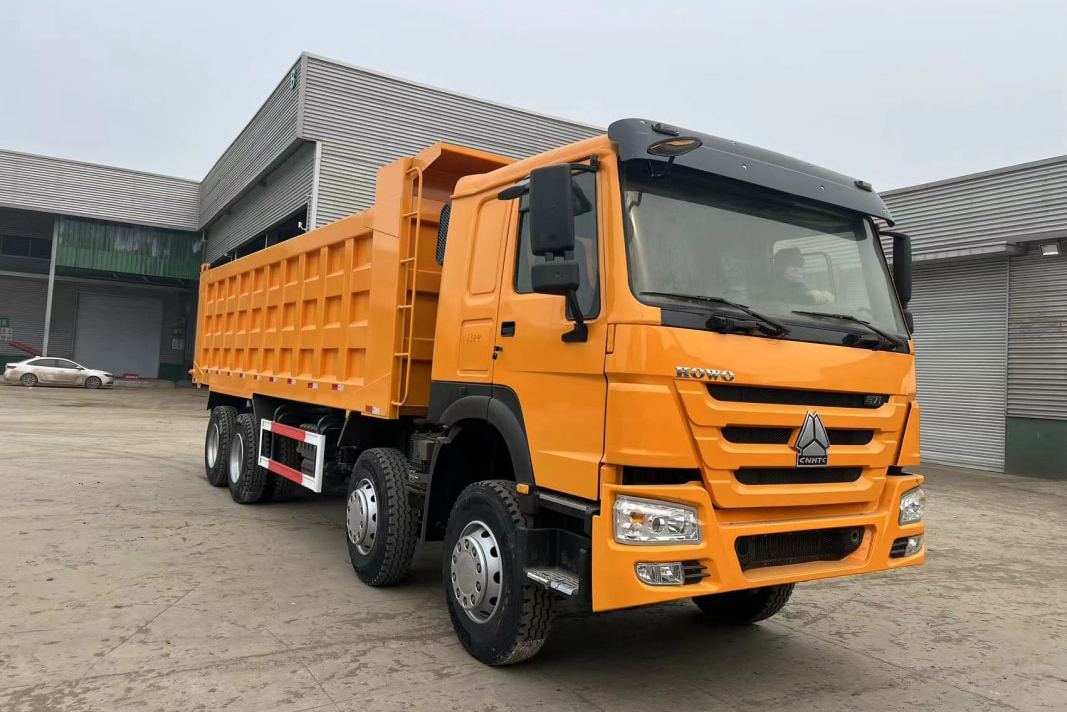

howo dump truck 84 371-420HP.12 wheeler trcuk (4).jpg

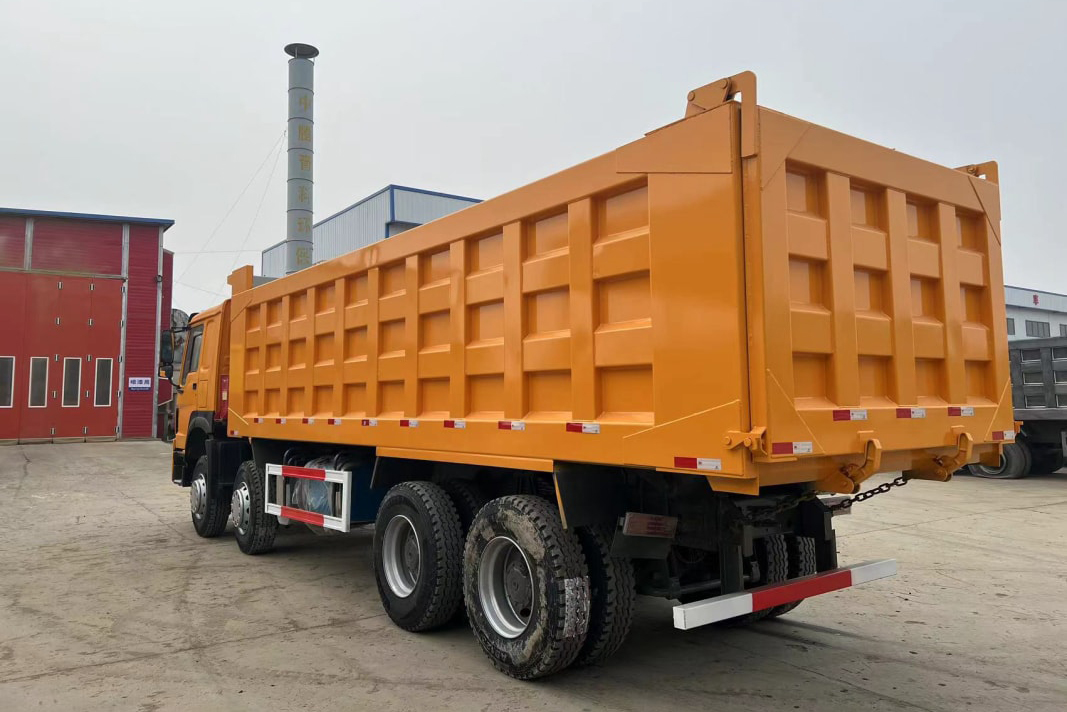

howo dump truck 84 371-420HP.12 wheeler trcuk (3).jpg

howo dump truck 84 371-420HP.12 wheeler trcuk (9).jpg

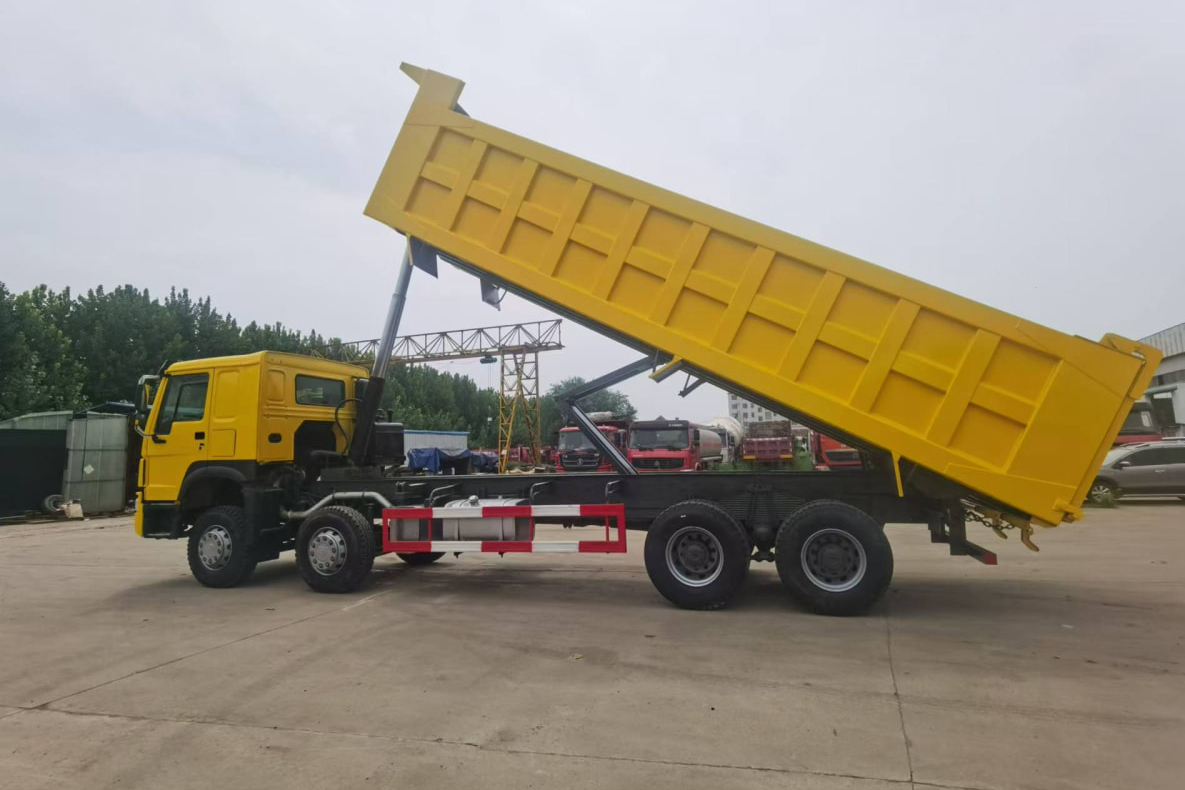

howo dump truck 84 371-420HP.12 wheeler trcuk (2).jpg

howo dump truck 84 371-420HP.12 wheeler trcuk (1).jpg

Product Process

• Number of Cylinders: 6

• Rated Speed: 2200rpm

• Chassis System

• Wheelbase: 1800 + 4800 + 1350mm

• Tire Specification: 11.00-20, 11.00R20, 12.00-20, 12.00R20, etc.

• Rear Axle: AC16

• Permissible Load of Rear Axle: 17500kg

• Gear Ratio: 5.45

• Number of Leaf Springs: Left 14, Right 13 / Left 14, Right 13 / 12

• Body and Cargo Box

• Vehicle Length: 11.83m

• Width: 2.496m

• Height: 3.45m

• Cargo Box Length: 8.8m

• Width: 2.3m

• Height: 0.95m

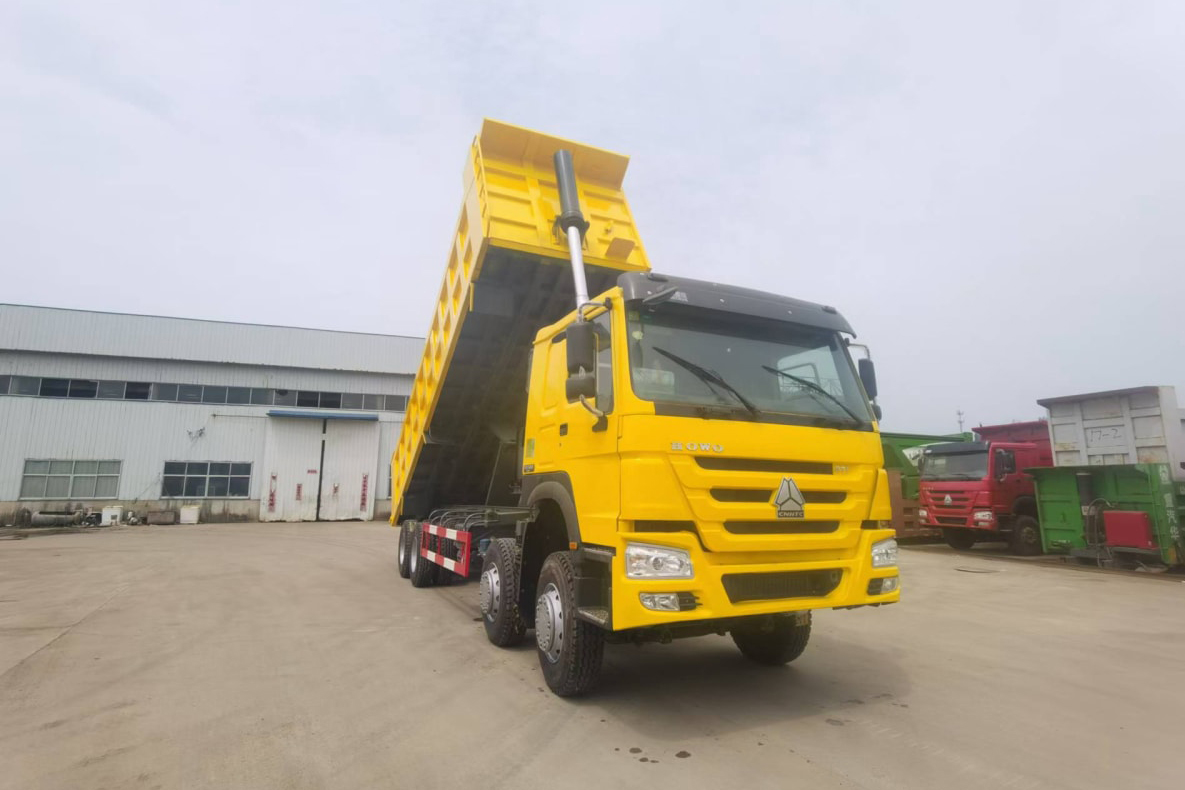

• Dumping Method: Rear-tipping Dumping Type

Product detail diagram

0102030405060708091011

Materials

Introduction of Howo 8×4 National II and National III Standard Dump Trucks

Howo 8×4 National II Standard Dump Truck

Advantages

01 /

Power System

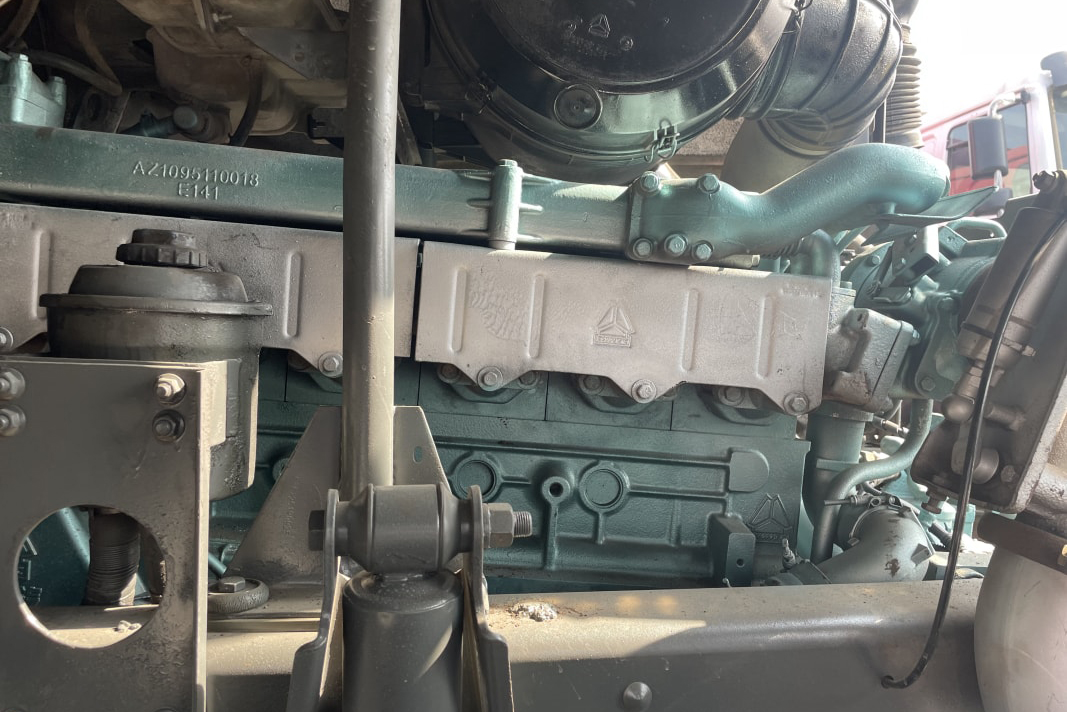

It usually comes with the Sinotruk WD615 series engine, such as the WD615.95E. With a displacement of 9.726L, it can output 371 horsepower, with a power of 273kW and a torque of 1350N·m. This powerful engine endows the truck with strong driving force, enabling it to handle heavy loads and complex road conditions with relative ease.

02 /

Chassis System

The wheelbase is generally 1800 + 4800 + 1350mm. The tire specifications include 11.00-20, 11.00R20, etc. The rear axle is of the AC16 type, with an allowable load of 17500kg and a gear ratio of 5.45. The sturdy chassis structure ensures the truck's stability and load-bearing capacity during operation.

03 /

Body and Cargo Box

The body is 11.83 meters long, 2.496 meters wide and 3.45 meters high. The cargo box is designed to meet various loading needs. Although the specific length of the cargo box you provided is incomplete in your previous information, it is typically designed to provide a large loading space for transporting construction materials, earthwork, etc.

Howo 8×4 National III Standard Dump Truck

04 /

Power System

Equipped with engines like Sinotruk WD615.97E, which has a displacement of 9.726L, a power of 221kW, and can generate a torque of 1210N·m, with a maximum horsepower of 300. The engine performance is optimized to meet the National III emission standards while still ensuring sufficient power for daily operations.

05 /

Chassis System

The wheelbase is often 1800 + 3200 + 1350mm. There are 12 tires in total, and the number of leaf springs is 11/11/12. The clutch is Φ430, the front axle is HF9 disc type, and the rear axle is AC16. This combination of chassis components provides good handling and load-bearing capabilities.

06 /

Body and Cargo Box

The whole vehicle is 9745mm long, 2496mm wide and 3450mm high. The cargo box is 6800mm long, 2300mm wide and 1200mm high. Some models may also use engines with 371 horsepower or 375 horsepower, and are matched with Sinotruk 10-speed manual transmissions. In addition, there are cargo boxes with dimensions of 7.4m in length, 2.3m in width and 1.5m in height, which are suitable for different transportation tasks.

In general, Howo 8×4 National II and National III standard dump trucks are well-known for their reliable performance, strong load-bearing capacity and adaptability to various working environments, making them popular choices in the construction and transportation industries.
