Dump Truck

Shacman F3000 10 Wheels /12 Wheels Tipper 64 84 Drive Type 380 HP Sinotruk HOWO Transport LHD Rhd 371HP 375HP 420HP Dump Truck for Sale

The Shacman F3000 8*4 dump truck stands out. Its powerful engines like WP12.430E201 offer high - torque output for heavy - load hauling. The durable MAN axles ensure long - lasting performance. The large cargo box with diverse sizes suits various tasks, and the fuel - efficient design cuts costs.

Overall Vehicle Length: 10730mm - 11900mm
Overall Vehicle Width: 2490mm - 2550mm
Overall Vehicle Height: 3450mm - 3700mm
Rated Mass: 15930kg
Kerb Mass: 13500kg - 18000kg

Contact Now

Basic Information

• Gross Vehicle Mass: 30660kg - 31000kg

• Wheelbase: 1800 + 4000 + 1350mm or 3175 + 1400mm

• Front Track: 1939mm

• Rear Track: 1860mm

• Approach Angle: 28°

• Departure Angle: 20°

• Cab Type: F3000 Medium-long Flat-topped Cab

• Number of Passengers Allowed: 2

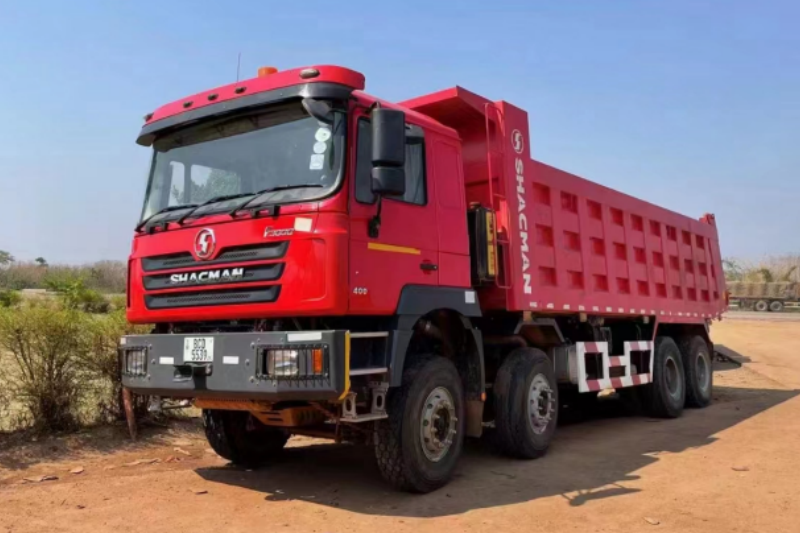

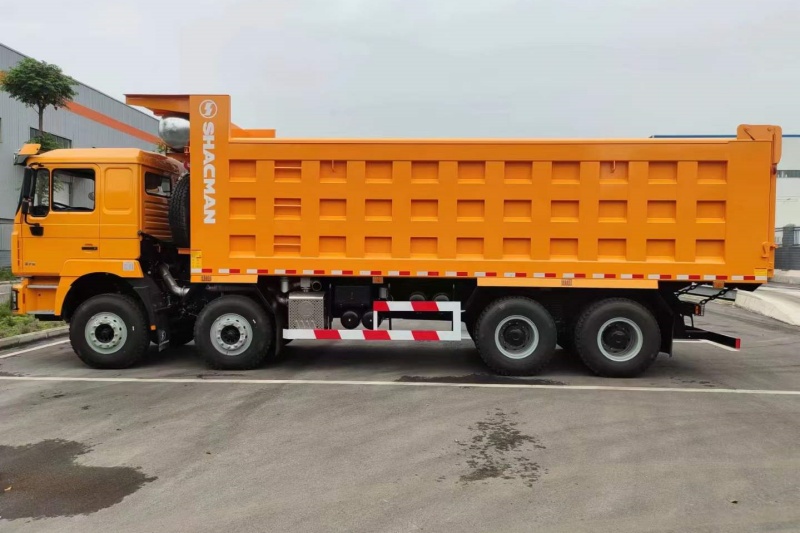

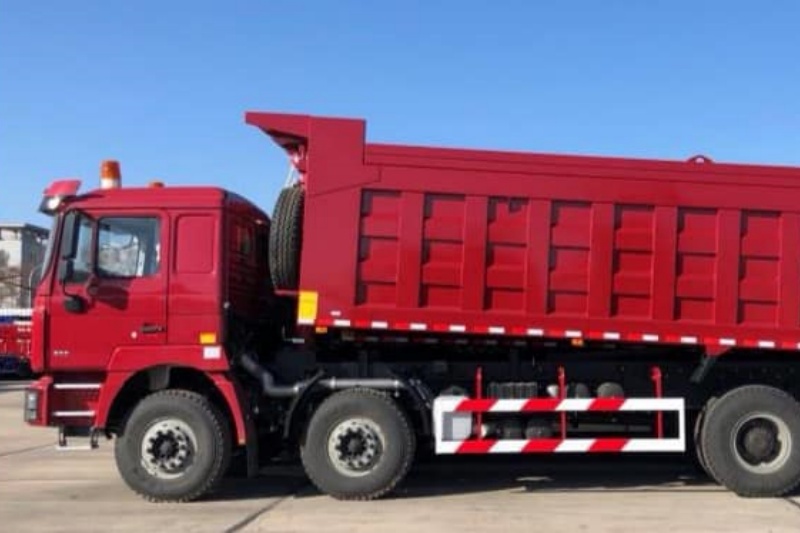

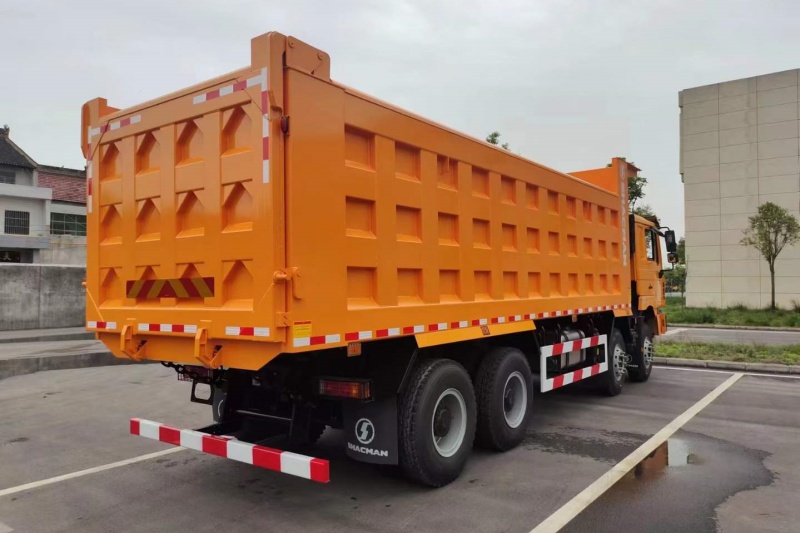

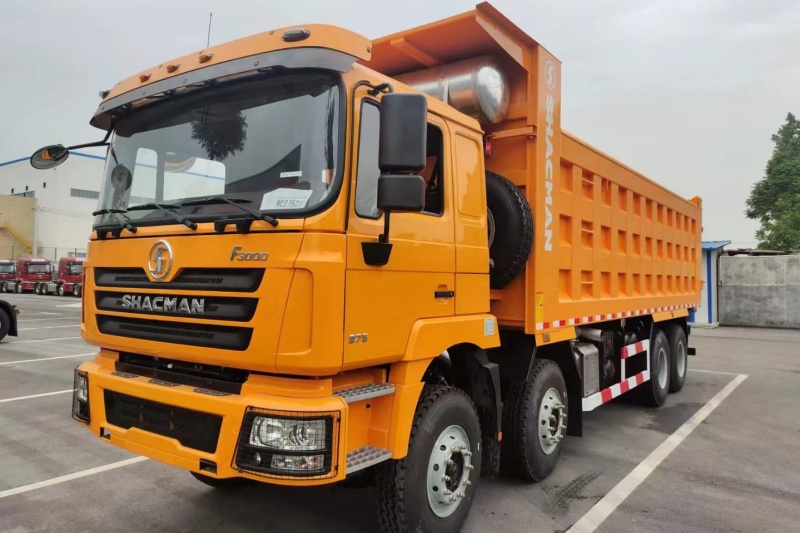

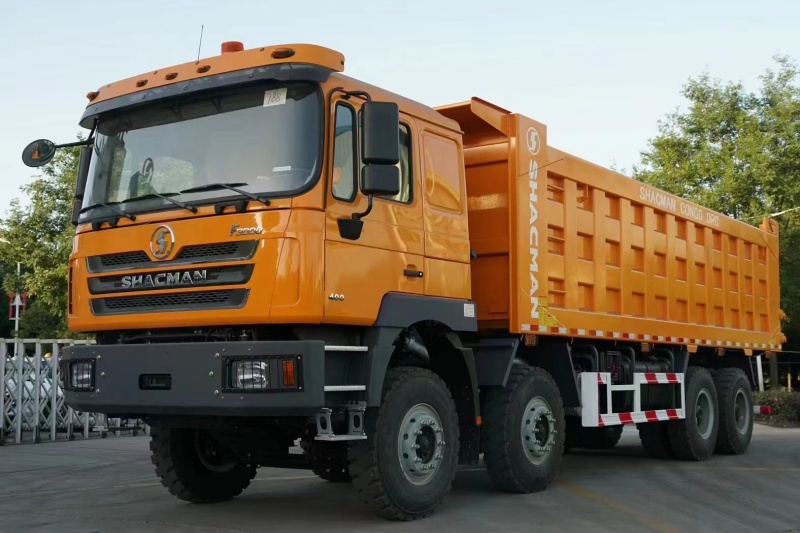

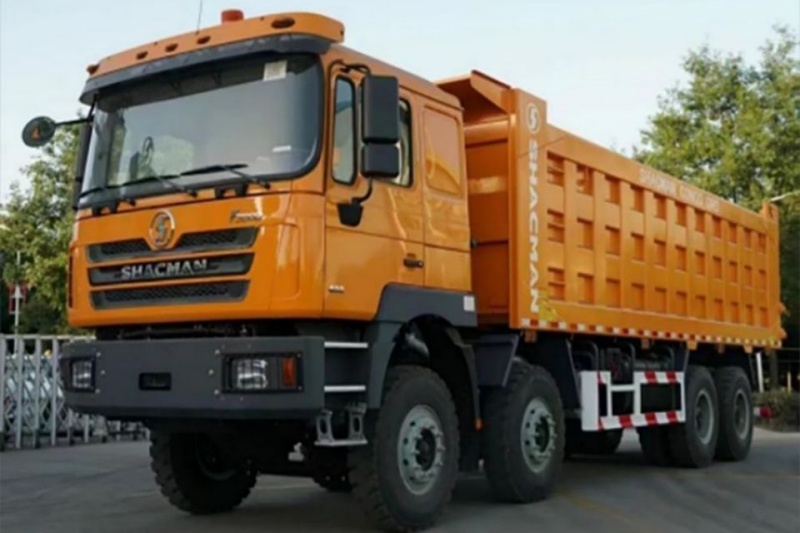

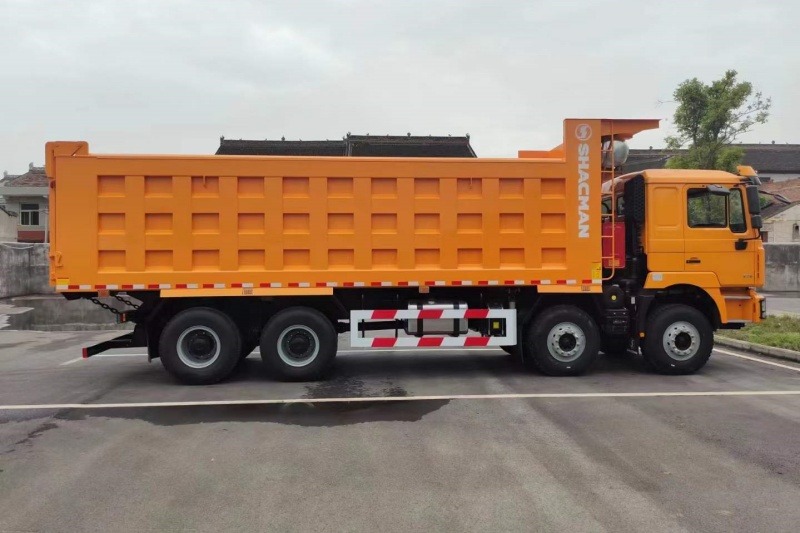

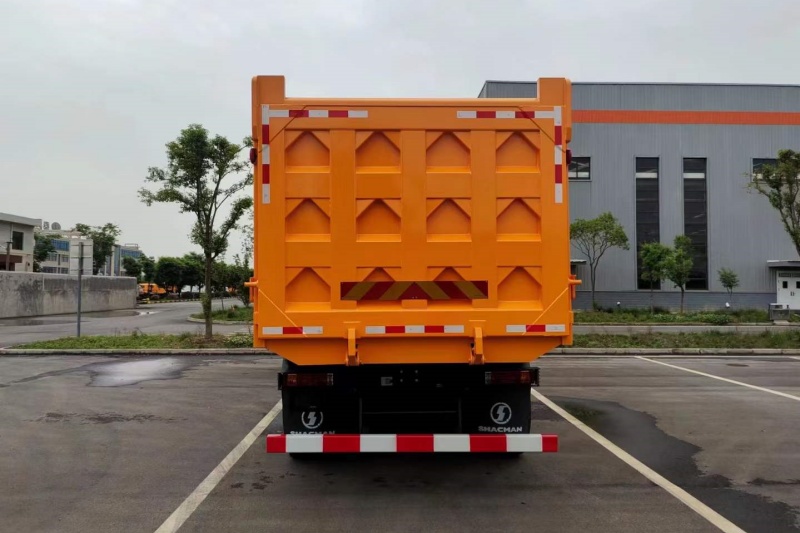

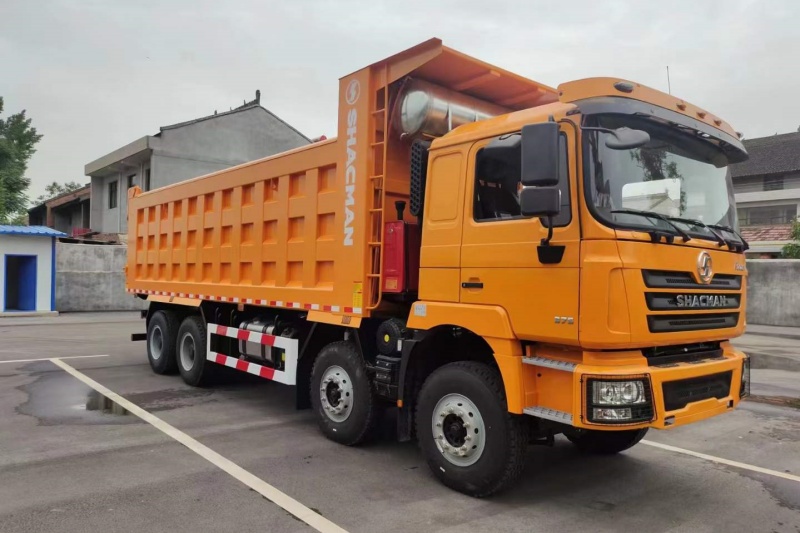

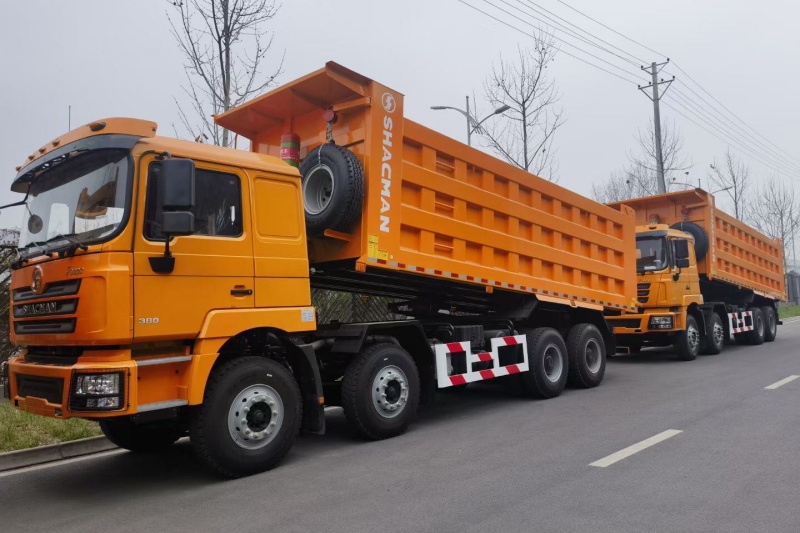

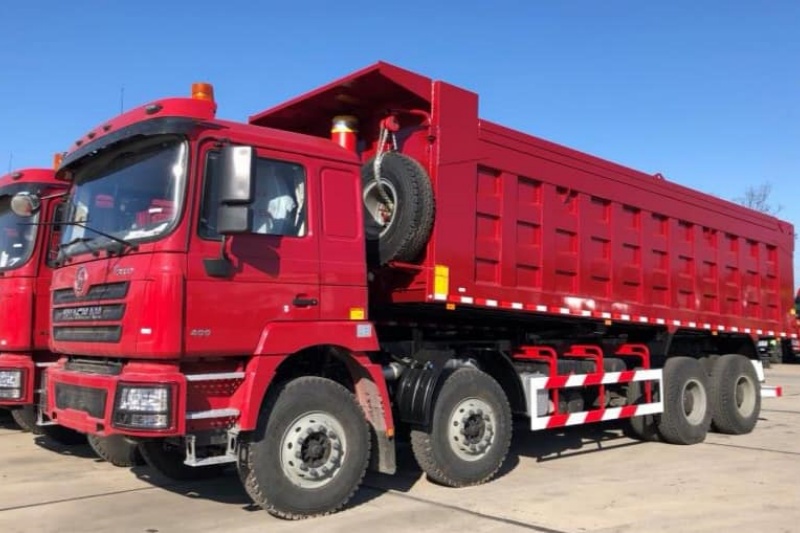

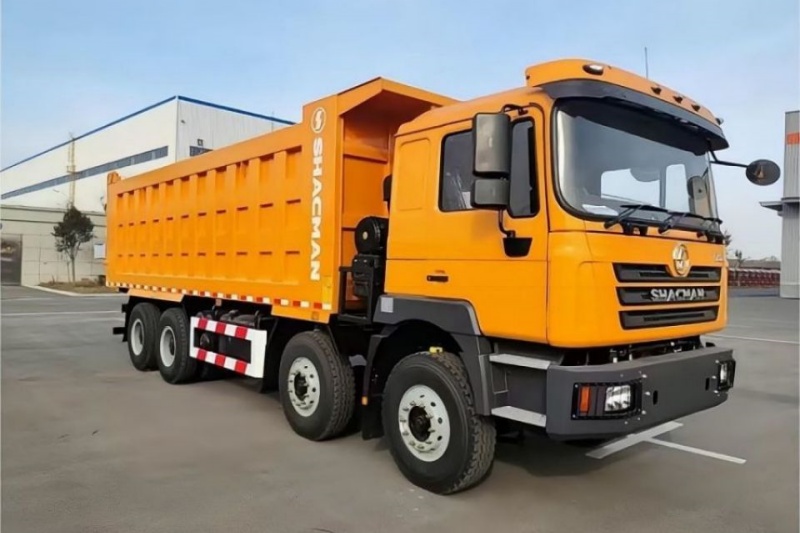

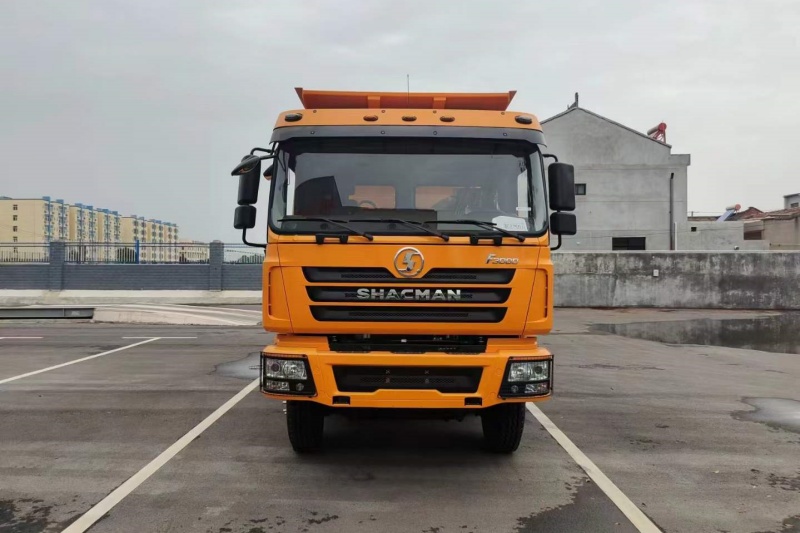

Product detail diagram

0102030405060708091011121314

Power System

• Engine: Models include WP12.430E201, WP10.380E22, etc., with corresponding horsepower of 430hp and 380hp.

• Transmission: Fast 10-speed or 12-speed manual transmission.

• Clutch: Φ430 diaphragm spring clutch.

Advantages

01 /

Chassis System

• Frame: 850x300 high-strength steel frame.

• Front Axle: 9.5T MAN Axle.

• Rear Axle: 16T MAN Cast Double-stage Axle, with gear ratios such as 4.769.

• Suspension: Multi-leaf spring structure, with the number of leaf springs being 14 on the left and 13 on the right / 14 on the left and 13 on the right / 12.

• Tires: Specification 12.00R20.

02 /

Body and Cargo Box System

• Cargo Box: Dimensions include 7800×2300×1050mm, 7600×2300×1500mm, etc.

• Lifting Method: Hydraulic lifting.

03 /

Others

• Fuel Tank: Made of aluminum alloy, with a capacity of 300L - 400L.

• Maximum Speed: 75km/h - 82km/h.

Discover Sackman 8×4 dump truck F3000

01 /

An Outstanding Model

In the field of heavy - duty transportation, the Sackman 8×4 dump truck F3000 is an outstanding model. It features a durable design, with the body made of high - strength steel, capable of withstanding extreme working conditions and heavy - load pressures. This ensures long - term stable operation and reduces maintenance costs.

02 /

Strong Power Output

Its 8×4 drive layout, combined with a powerful power system, provides unparalleled traction and excellent off - road performance. The high - performance engine installed offers strong power output. Whether on the muddy roads of construction sites or the rugged mountain roads of mines, it can easily cope and efficiently complete transportation tasks.

03 /

Your Most Reliable Partner

The large - capacity dump box is designed for convenient and fast loading and unloading, effectively improving work efficiency. At the same time, it pays attention to the driver's operation experience. The cab is equipped with ergonomic seats and a convenient control system, reducing the driver's work fatigue. The Sackman 8×4 dump truck F3000 is your most reliable partner in fields such as construction and resource transportation, injecting strong impetus into the development of your business.
